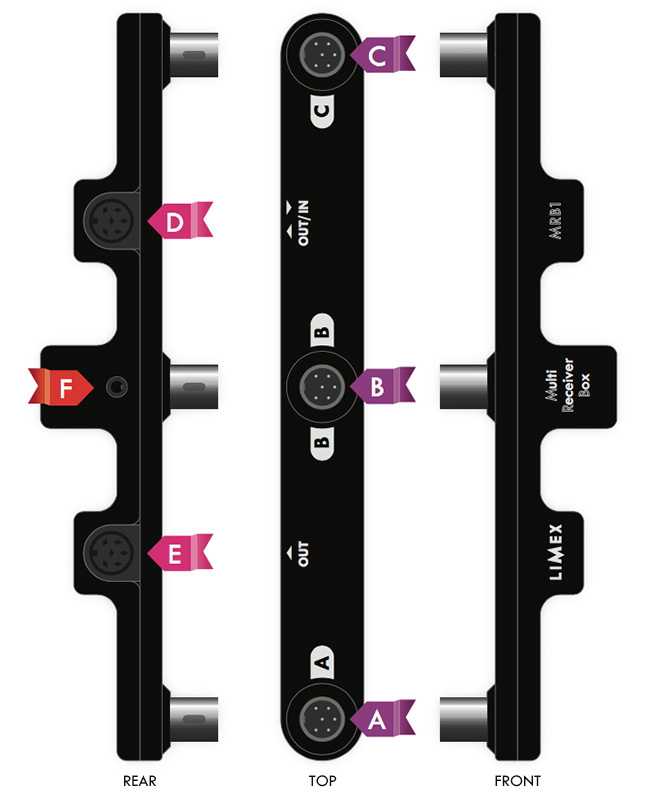

WIRELESS RECEIVER CONNECTIONS
A For direct connection of a LIMEX wireless receiver W4 for 2 channel AUDIO + MIDI bidirectional. Alternatively, a wireless receiver with a jack connection (via adapter) can be used.
B For direct connection of a LIMEX wireless receiver for 2 channel AUDIO + MIDI unidirectional. Alternatively, a wireless receiver with a jack connection (via adapter) can be used.
C For direct connection of a LIMEX wireless receiver for 2 channel AUDIO + MIDI bidirectional. Alternatively, a wireless receiver with a jack connection (via adapter) can be used.
CABLE PORTS
Both ports "D" and "E" are for direct connection of a LIMEX instrument cable. The instrument cable is connected directly to the "Multi Receiver Box" using an angle plug instead of to the instrument and can be wired to the following LIMEX products: Adapterkabel, Splitbox, Soundbox, Foot Pedal as well as Speakerbox 120A-V4. Bidirectional MIDI data is used for many applications. For bidirectional data transmission, you need a corresponding wireless system such as the "Wireless system W4".
D This connector is suitable for bidirectional MIDI data traffic.
E This port is not suitable for bidirectional MIDI data traffic.
JACK PORT 3,5 mm
F This input is intended for direct connection of a Bluetooth receiver. Products such as CD players, MP3 players, cell phones (with line level) or similar can also be connected.
