MIDI Professional X (MPRX) System

Features

Touch Display Touch Controller - 11 free programmable touch-pads 50 (without) to 2400 (with Display) memory locations USB to PC connection for simple sound setup New Bellow Dynamic MP3 player MIDI-Files player Style Arranger 48 MIDI-channels Playback and Live can be adjusted accordingly 16 sounds for live-play/sound SETS

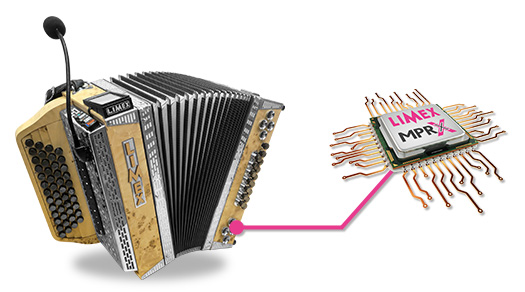

Button accordion with MPRX System


MC12 Controller with Touch-pads
There are 13 specific pads on the MC12 MIDI controller
and by touching a pad, - you can choose a different
control settings at your own discretion.
Each pad is customizable through our PC software.


Touch-Display with
SD memory card

What are the Sound SETS?

With MPRX you could theoretically play 16 sounds by pressing one button.
Of course, this is not a practical application. Rather, this is meant to prepare for a sound change and then simply trigger it with a push of a button, but let us explain it with an example:

3 parts of an Oberkrainer song:

1. Trumpet and clarinet on the treble side,- the clarinet playing upper and the trumpet lower voice.
Chord Guitar "Stereo" and accordion chord on the chord keys.
Baritone + E-bass + guitar + accordion bass on the bass buttons.
Up to now, there are 9 sounds needed for a perfect reproduction of the piece!

2. Next - simply switch to SET2 by touching pad 2 on MC12 controller (second part of the piece) and play it appropriately to the piece:
Accordion (polyphonic) in the treble-the clarinet now plays the lower second voice.
Up to now - here are 11 sounds.

3. Switch to SET3 by touching pad3 on the MC12 controller:
Baritone solo on the treble in the lower part of the treble keyboard.
Trumpet and clarinet plays in the upper part of the treble keyboard.
Total = 14 Sounds.

If you re-call PATCH the Oberkrainer setting (factory default), - this is already prepared and ready. It is how music can be played.

With our system you don`t need to turn ON and OFF all the instruments while playing.

Just choose e.g. "Oberkrainer" pre-set and SETS are ready to play, therefore you have to only switch between those 3 SETS for perfect play. Our system is very flexible and all those sound settings can be adjusted and created using easy to use PC software, so even Glenn Miller compositions are no problem to realize.

Connecting LIMEX MIDI-System

MPRX & MKPX Manual (PDF file) (german only)

MPRX Touch Display Manual (PDF file) (german only)
